How Do You Design A Shaped Bag For Food Or Beverage Products?

Moving away from standard square or rectangular packaging is a proven way to capture market share. However, transitioning to a custom design introduces strict manufacturing and operational constraints. Designing flexible packaging for food and beverage items requires meticulous engineering. You must balance shelf aesthetics alongside barrier properties, structural integrity, and filling machine compatibility. A visually stunning concept means nothing if it bursts during transit or jams on your production line. Many brands fail because they treat pouch design purely as a graphic exercise.

This guide breaks down the technical roadmap for engineering a custom pouch. We show you how to build a package to survive the complex supply chain. You will learn how to meet compliance standards and achieve reliable manufacturing results. By prioritizing structural physics and operational alignment early, your brand can confidently launch unique packaging formats. Our actionable steps help you navigate tooling, material choices, and machinery limits successfully.

Key Takeaways

• Structural limitations dictate form: The specific gravity and volume of your food or beverage dictate the center of gravity, limiting how extreme the custom shape can be before the pouch tips over.
• Tooling requires precision: A custom die cut shaped pouch necessitates custom tooling (cutting dies); errors in the dieline phase result in costly re-tooling and production delays.
• Copacker alignment is mandatory: A structurally perfect bag is useless if your co-manufacturer’s form-fill-seal (FFS) or premade pouch machinery cannot grip, open, or seal the non-standard edges.
• Sealing zones dictate design boundaries: Minimum seal margins (usually 5–8mm) and the avoidance of sharp internal angles are non-negotiable to prevent leakage and burst failures during transit.

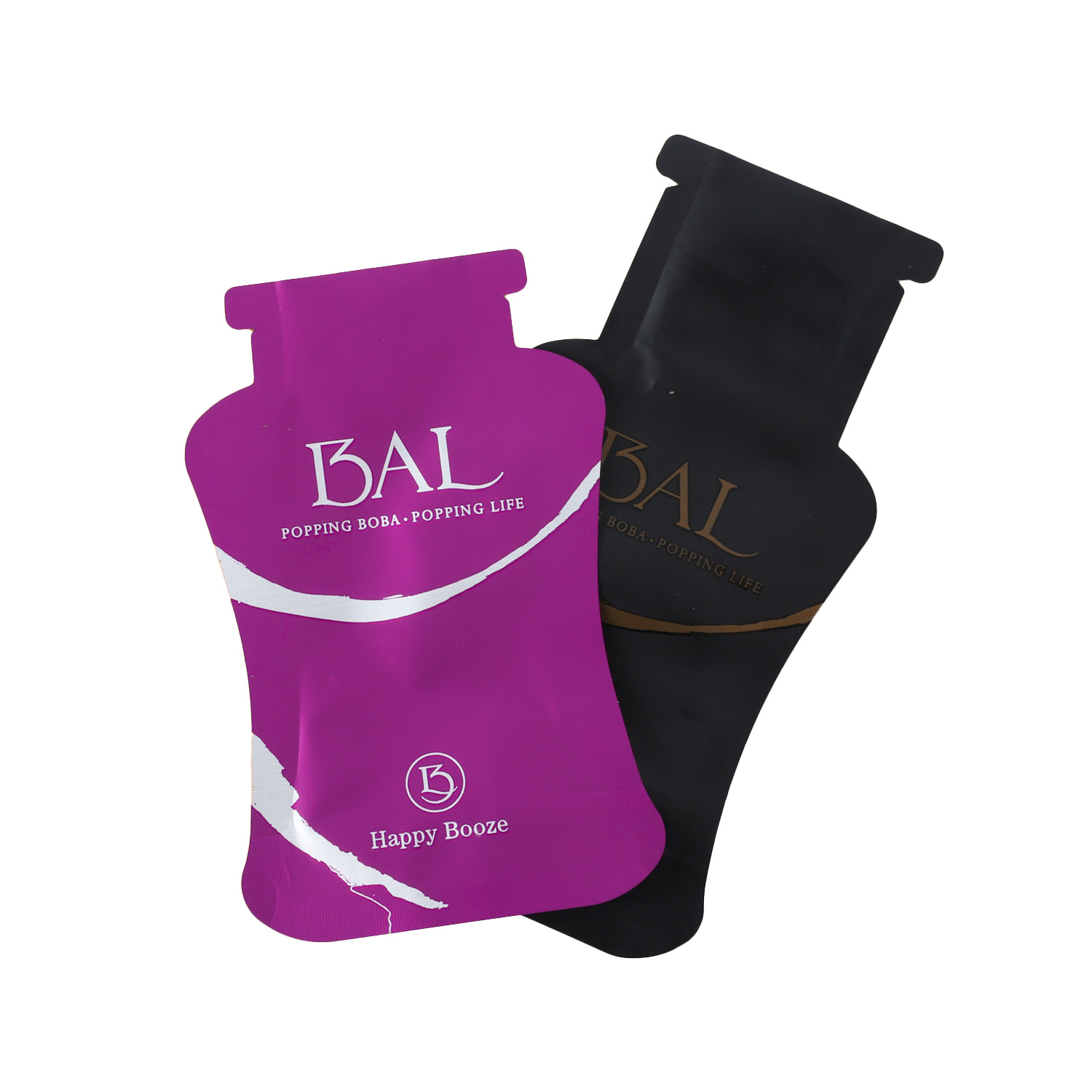

Assessing Structural Feasibility for Your Shaped Bag

Before drafting aesthetics, establish physical limitations. Evaluate these limits based on the product state. Liquid, powder, and solid products behave differently inside flexible containers. You must design the packaging around physical product behavior rather than pure visual ambition. A Shaped Bag acts as a dynamic vessel.

Liquids shift dramatically during transit and retail display. A custom shape must feature a properly engineered bottom gusset. Common options include K-seal, Doyen, or plow bottom styles. These specific designs account for product displacement efficiently. They ensure the pouch remains perfectly upright on retail shelves. If the center of gravity shifts too high, the bag will inevitably tip over.

Custom shapes inherently reduce internal usable volume. You cannot compare them directly to standard rectangles of similar external dimensions. Volumetric calculations must carefully account for product fill levels. This avoids over-pressurizing the bag during the sealing process. An overfilled bag places immense stress on side seams.

Flowable foods and liquids demand natural fluid direction. The shape must logically guide contents toward the spout or tear-notch. Avoid creating interior trap zones at all costs. These are sharp internal crevices where product gets permanently stuck. Trap zones frustrate consumers and cause unnecessary food waste.

Structural Assessment Checklist

1. Calculate the product specific gravity and net weight accurately.
2. Determine the absolute minimum internal volume required.
3. Select a bottom gusset style suited for the specified weight.
4. Map out the dynamic center of gravity using physical tests.
5. Identify and eliminate any potential flow trap zones.

Engineering the Dieline for a Die Cut Shaped Pouch

The dieline serves as your fundamental blueprint. Moving from a rough concept to a production-ready die cut shaped pouch requires adherence to strict geometric rules. Packaging engineers use CAD software to plot these critical boundaries.

Standard flexible packaging requires continuous seal widths around the entire perimeter. Irregular shapes must still allow for uniform heat or ultrasonic sealing. Manufacturers typically require 5mm to 10mm wide margins. You must integrate these structural margins without distorting your final graphic artwork. Narrow seals lead to catastrophic micro-leaks.

Avoid acute internal angles entirely. Sharp corners create dangerous weak points known as stress risers. These specific areas are highly prone to tearing. They burst easily under pressure or fail standard drop tests. All curves must feature a minimum safe radius. This ensures they suit standard die-cutting blades perfectly.

Artwork must extend well beyond the designated cut line. This bleed area accounts for microscopic physical shifts during the die-cutting process. Meanwhile, critical nutritional information must remain absolutely safe. Keep barcodes and mandatory text safely inside the inner sealing boundaries. Misaligned cuts can quickly ruin regulatory compliance.

Dieline Tolerance Comparison Chart

Material Selection and Barrier Requirements

The specific layers of film directly impact structural performance. They govern bag rigidity, printability, and overall food-safe compliance. Selecting the wrong laminate guarantees a failed product launch.

Non-standard shapes lack typical structural predictability. Thicker laminations are often mandatory for custom silhouettes. Specific structural layers, like high-density PET or oriented Nylon (BON), prevent unwanted folding. They stop the custom shape from collapsing heavily on itself. Thin materials simply cannot hold complex irregular outlines upright.

Different products require highly tailored barrier profiles to preserve shelf life.

• Beverages: Liquid goods require extremely high moisture and oxygen barriers. Aluminum foil (AL) or EVOH layers work best. They must withstand intense pasteurization or hot-fill temperatures. The film cannot delaminate under extreme heat stress.
• Dry Foods and Snacks: You must focus heavily on puncture resistance here. Grease barriers are also crucial for preservation. This is particularly true for products containing sharp edges like chips, nuts, or hard candies.

Mono-material recyclable structures are highly trending across the industry. However, they typically offer much less rigidity than traditional multi-material laminates. You must rigorously evaluate if a recyclable PE film can physically support your shape. Sustainable materials often require thicker gauges to achieve comparable stiffness.

Material Barrier Reference Table

The Prototyping and Tooling Workflow

Do not move directly from digital design into mass production. A phased physical prototyping approach heavily mitigates major risks. It prevents catastrophic packaging failures before ordering thousands of units.

Start your testing with unprinted physical mockups. Use hand-cut or plotter-cut samples first. Ensure you use the exact specified material structure. Fill these preliminary mockups with your actual product. Test them thoroughly for stability, maximum volume, and general handling. Squeeze them to simulate supply chain pressure.

Advanced 3D software simulates shape geometry beautifully on a screen. However, it cannot perfectly predict realistic film tension. It struggles to simulate actual creasing behavior or material memory. Use digital renders strictly for initial stakeholder buy-in. Rely only on physical mockups for true technical validation.

Once the dieline is firmly locked, tooling begins immediately. The manufacturer machines a custom metal cutting die. Understand the severe finality of this manufacturing step. Any subsequent changes to the pouch silhouette require a brand new die. This incurs additional tooling fees automatically. It also severely extends your final production timelines.

Operational Alignment: Filling, Sealing, and Copacking

A successful design must survive the actual manufacturing floor. Engage your co-manufacturer during the early design phase. Do not wait until the pouches are printed and delivered.

Automated packaging lines use specific handling mechanisms for speed. They rely on suction cups or mechanical grippers constantly. These tools pick up, open, and advance empty pouches. If your design lacks flat surface areas, massive problems arise. The machinery will jam frequently at designated grip points. Discuss required suction zones with the equipment operator.

Adding fitments requires extremely rigid insertion points. Heat sealing around a spout demands specific custom tooling. This tooling must precisely align with the top geometry. Zippers for snacks also require straight, predictable alignment zones. You cannot place a straight zipper effectively across a deeply curved edge.

Highly irregular shapes rarely pack efficiently into standard boxes. They struggle to fit snugly into standard corrugated master cartons. Calculate the immediate impact on pallet density carefully. Review shipping economics and box sizes before finalizing the physical design. Wasted space in secondary packaging increases freight overhead.

Conclusion

Designing a custom shaped package is an advanced engineering exercise. It goes far beyond standard graphic branding efforts. Success requires balancing creative ambition with harsh physical realities. By prioritizing structural feasibility early, brands can successfully deploy unique formats.

Here are your immediate next steps:

• Calculate your product's specific gravity and map the dynamic center of gravity.
• Adhere strictly to safe dieline parameters to prevent leakage and bursting.
• Align your structural design directly with your co-packer's filling equipment capabilities.
• Request a standardized dieline template from your manufacturing partner today.
• Begin blank prototype testing using your actual product immediately.

FAQ

Q: Does a die cut shaped pouch cost more than a standard stand-up pouch?

A: Yes. Custom shapes require a one-time tooling fee for the cutting die. Additionally, they often generate more material waste around the edges of the film web. This scrap slightly increases the unit cost per bag compared to standard rectangular pouches.

Q: What is the minimum order quantity (MOQ) for custom shaped bags?

A: MOQs depend on the manufacturer and the chosen printing method. Because of the custom tooling required, MOQs for die-cut pouches typically start between 10,000 and 30,000 units. However, some digitally printed suppliers may offer lower initial runs.

Q: Can I use sustainable or recyclable materials for a shaped pouch?

A: Yes, but with limitations. Mono-material PE structures can be die-cut safely. However, they are generally softer and less rigid than traditional multi-layer laminates. You must rigorously test prototypes to ensure the recyclable material holds its custom shape.

Q: How long does it take to develop a custom shaped pouch?

A: Factoring in dieline engineering, prototyping, artwork approval, and die fabrication, the timeline ranges from 6 to 10 weeks. This is notably longer than standard pouches due to the mandatory custom tooling phase.
