Selecting the right packaging format represents a critical operational decision for your manufacturing line. It is never just an aesthetic choice. You risk costly machine downtime, compromised barrier integrity, and inflated material expenses if you choose poorly. A central decision often comes down to comparing the standardized efficiency of a three-sided seal format against the structural capacity of a quad seal. Both formats dominate retail shelves today, but they serve entirely different engineering purposes. Evaluating these two options requires careful analysis of your production environment. We will break down machinery compatibility, product volume thresholds, and overall unit economics. You will learn exactly how to align your product specifications with the right pouch architecture. This ensures you can scale production smoothly while protecting your product quality.
Understanding the fundamental engineering differences between pouch formats helps you avoid critical production errors. We must establish clear, technical definitions of both architectures to understand their distinct behavioral traits on a packaging line.

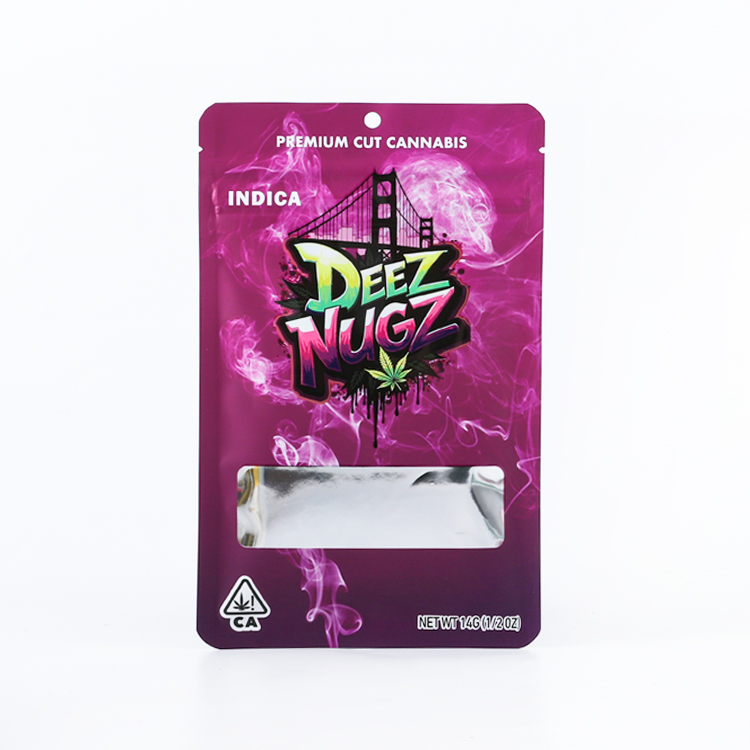

Manufacturers produce a Three Seal Bag by folding a single continuous web of film or bonding two separate sheets together. The machine applies heat and pressure to create solid seals along three distinct sides. The fourth side remains open. Operators or automated fillers load the product through this open end before a final heat-sealing process closes the unit.
Its profile is inherently flat. This format completely lacks side gussets or expandable bottom folds. Because it has no expandable sides, the internal volume relies entirely on the physical flexibility of the chosen film. Thicker films restrict how much product you can insert before the bag stresses its perimeter seams.
A four seal bag features structural seals running along all four vertical corners of the package. Manufacturers design this format by incorporating deep side gussets between the front and back panels. The sealing jaws press the edges of these panels together, creating distinct, reinforced pillars at every corner.
Once filled, this pouch forms a highly rigid, rectangular, block-bottom shape. It is highly capable of standing independently on retail shelves. This design smartly shifts internal structural stress away from the primary central panels and redirects it toward the four reinforced corners. This engineering approach dramatically improves the overall burst strength of the package.
You must compare these two formats across critical performance metrics. Product behavior, retail display needs, and barrier protection requirements will dictate your final selection.
A three seal package offers a strictly fixed internal capacity. It cannot expand structurally. If you overfill it, the bag begins to "pillow" or bulge outward. This pillowed shape severely distorts your printed branding and drastically increases the risk of burst failures during transit. You must calculate precise fill weights to avoid seam stress.
Conversely, a four seal format utilizes its gusseted design to allow for significant volumetric expansion. You can pack larger quantities of product inside without increasing the frontal footprint. This means you can maintain the same facing width on a retail shelf while holding twice the product volume of a flat pouch.
A three seal architecture proves excellent for vacuum-sealed applications. It shines where you need minimal headspace. The simplified heat-seal geometry creates highly reliable hermetic seals. There are no complex folds or intersecting film layers to complicate the vacuum process, making it ideal for perishable goods.
A four seal design delivers superior performance for heavy, bulk products. Imagine packaging 5lb bags of pet food or dense granular materials. The four reinforced corners provide exceptional burst resistance. They absorb impact energy brilliantly during drop tests. The structural pillars prevent the bottom seams from splitting when subjected to sudden shock.
Branding visibility plays a major role in retail success. A three seal package provides two flat, uninterrupted panels. You get a distinct front and a distinct back. Designers must fit all graphics, barcodes, and regulatory text into these two spaces.
A four seal package offers four continuous panels. This layout allows you to separate complex nutritional labeling and regulatory compliance data from your high-impact graphics. You can use the side gussets for multi-language text or cross-promotional marketing. This keeps your primary display panel clean and visually striking.
Theoretical design benefits mean nothing if your packaging line cannot handle the format efficiently. We must address the implementation constraints and potential production risks associated with each choice.
A flat pouch packaging format remains highly versatile. You can easily integrate it into high-speed Vertical Form Fill Seal (VFFS) or Horizontal Form Fill Seal (HFFS) lines. The machinery requires far less complex tooling. Line operators appreciate the minimized changeover time between different sizes. You generally face fewer jamming issues because the web feeds evenly.
A four seal format demands specialized quad-seal tooling, especially on VFFS machines. The alignment tolerances for folding and sealing side gussets remain exceptionally strict. Any slight misalignment causes severe visual defects. Worse, crooked gusset tracking often leads to microscopic seal leaks, ruining product freshness.
Consider the real-world application of upgrading material. Transitioning from a 3mil to a 4mil film often becomes necessary to achieve better puncture resistance. However, thicker films require significantly higher heat penetration to melt the sealing layers effectively. You must slow down the line speed or increase jaw temperatures.
This introduces a major risk factor for quad seal configurations. Four seal bags have critical intersecting seal points. These are areas where the folded side gussets meet the flat panels. At these junctions, the sealing jaws suddenly transition from pressing two layers of film to pressing four layers of film. This requires incredibly precise temperature and pressure calibration to prevent micro-leaks in the transition zones. Three seal bags offer a perfectly uniform sealing surface, which drastically reduces thickness-related failure rates.
You need a transparent breakdown of where you will incur extra costs or realize savings. Understanding material utilization and logistics efficiency is crucial for your bottom line.
A three seal pouch inherently uses less total film per finished unit compared to a four seal bag of similar frontal dimensions. By eliminating the extra material required for deep side gussets, you reduce your overall web consumption. This translates directly to lower per-unit material costs.
Furthermore, four seal production generally yields slightly higher scrap rates. During machine calibration and roll changeovers, operators waste more film getting the complex gusset folds perfectly aligned. The complexity of the folding plows means it takes longer to dial in the machine, generating more wasted web stock.
Logistics costs heavily influence packaging decisions. Unfilled flat pouches ship highly densely. Because they lie perfectly flat, manufacturers can pack thousands of units into a single carton. This lowers your inbound freight costs and reduces warehouse storage requirements before filling.
However, the narrative flips once you fill the packages. Filled four seal bags palletize much more efficiently. Their rigid, block-bottom shape allows them to stack cleanly like bricks inside secondary corrugated packaging. This structural advantage eliminates dead space inside the master carton. Conversely, filled three seal bags often take on an irregular, pillowed shape that wastes cubic space on an outbound pallet.
We need to establish clear criteria for shortlisting your packaging based on your specific product category and business goals. Use the following guidelines to inform your procurement strategy.
When to Specify a Three Seal Bag:
When to Specify a Four Seal Bag:
| Performance Metric | Three Seal Bag | Four Seal Bag |
|---|---|---|
| Production Speed | Extremely High | Moderate to High |
| Burst Strength | Moderate | Excellent |
| Tooling Complexity | Low | High |
| Shelf Presentation | Pegged / Lying Flat | Free-Standing Block |
| Vacuum Suitability | Excellent (Fewer leak paths) | Fair (Requires precise transition seals) |
Neither pouch format is universally superior. The correct choice hinges on the direct intersection of your product volume, retail display requirements, and your existing automation capabilities. You must balance the streamlined, high-speed simplicity of a flat layout against the robust, high-capacity nature of a quad-sealed alternative.
To move forward effectively, we recommend the following action-oriented next steps:
A: Yes, they often vacuum-seal more effectively. The absence of complex gusset folds reduces the risk of capillary leaks during the vacuum process. You avoid intersecting seal layers, especially when running standard 3mil and 4mil barrier films. This simplified sealing geometry ensures a reliable hermetic lock.
A: A back seal, or fin seal, uses one vertical seam running down the center back. It typically forms a rounded pillow shape. A four seal bag eliminates this center back seam entirely. Instead, it places vertical seals strictly on the four outer corners, creating a rigid block shape.
A: Most standard form-fill-seal machines easily handle basic flat pouches. They require simple tooling and minimal mechanical adjustments. However, upgrading to four-seal or quad-bottom configurations usually requires specific machinery retrofits. You often need dedicated forming tubes and specialized sealing jaws to accommodate the intricate side gussets.
